GENSTAR L1

Fast AI produce recognition

efficient, time‑saving,

faster checkout.

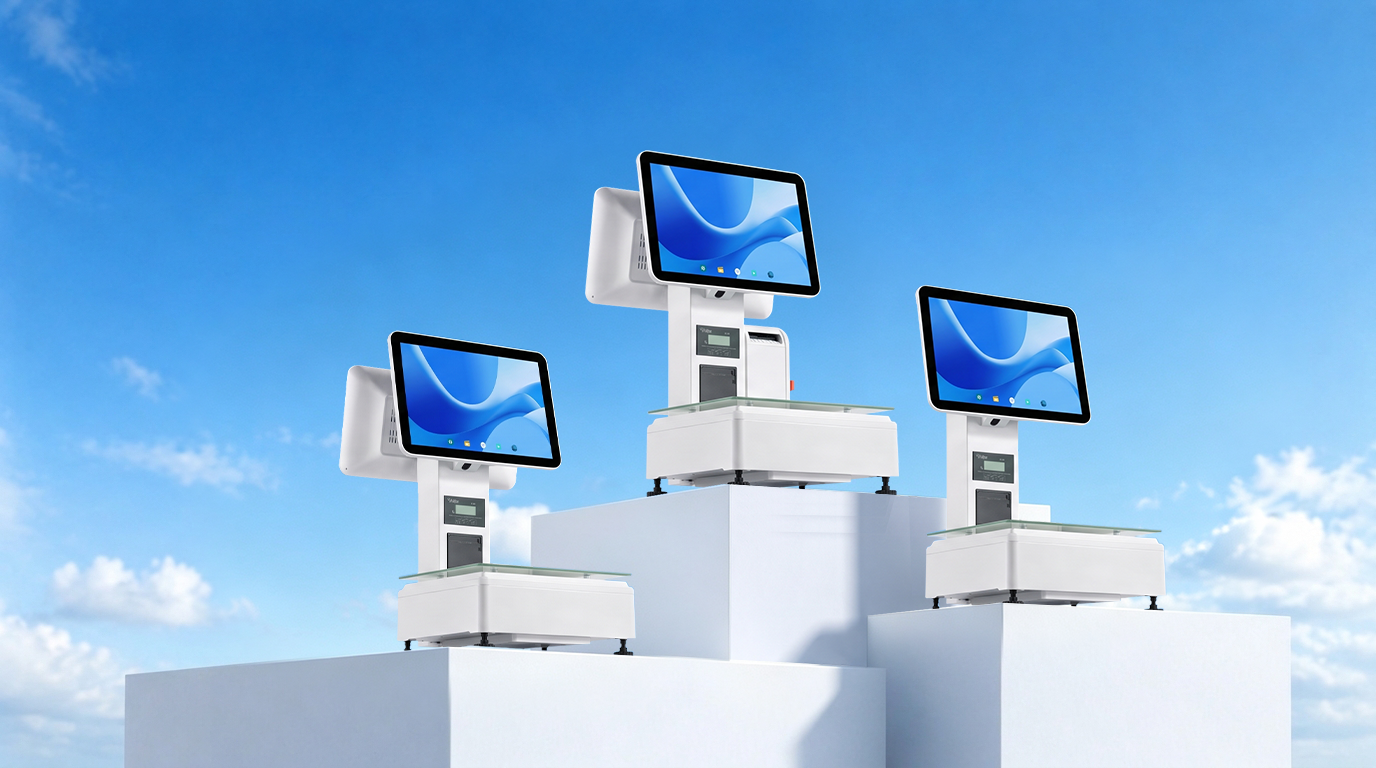

Different configurations

Flexible hardware options available

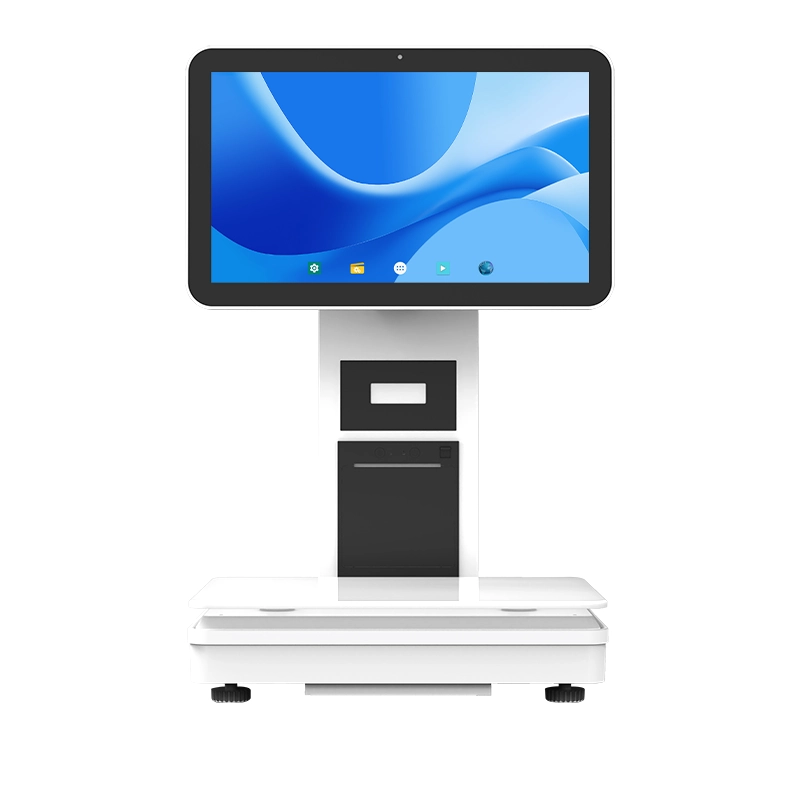

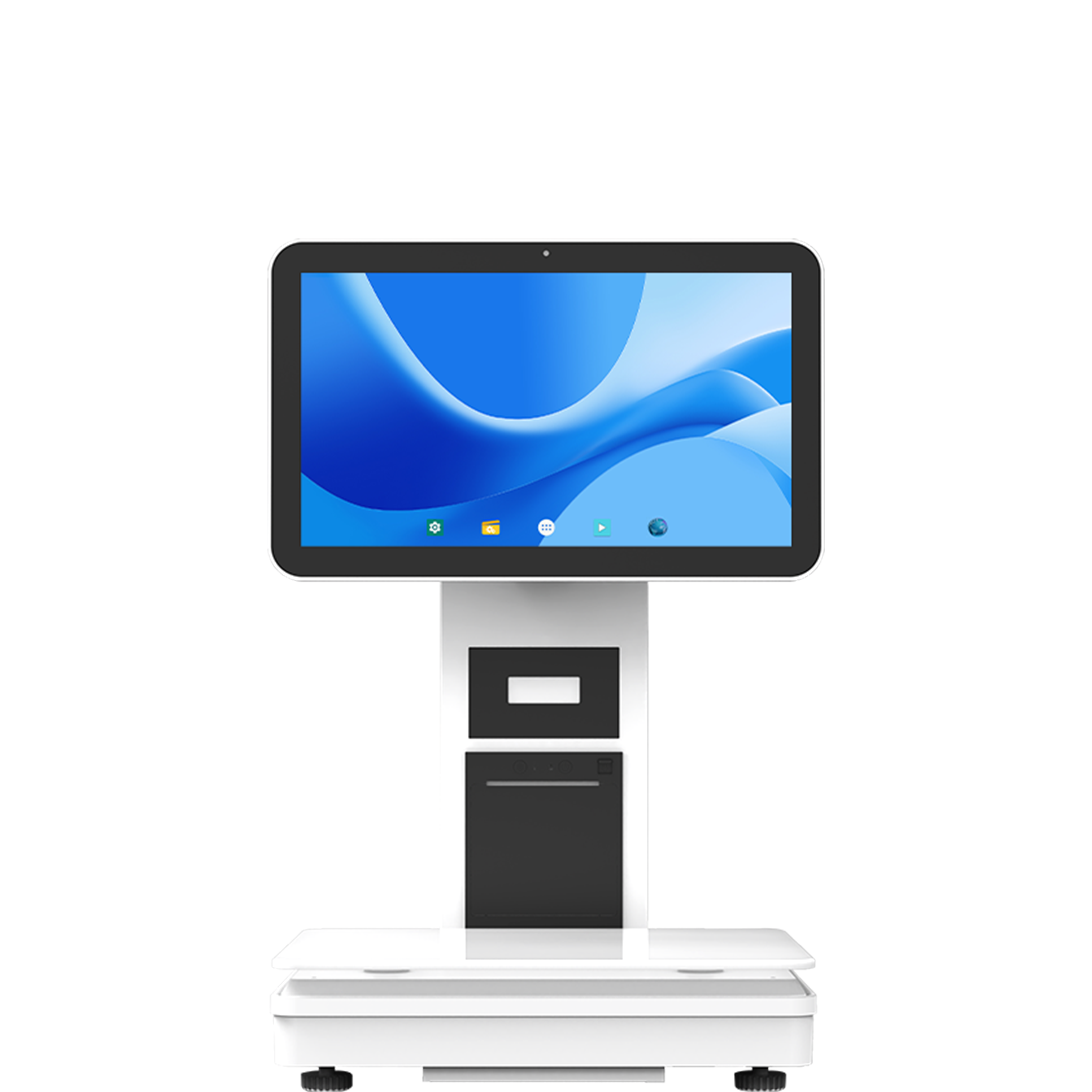

L1 front view

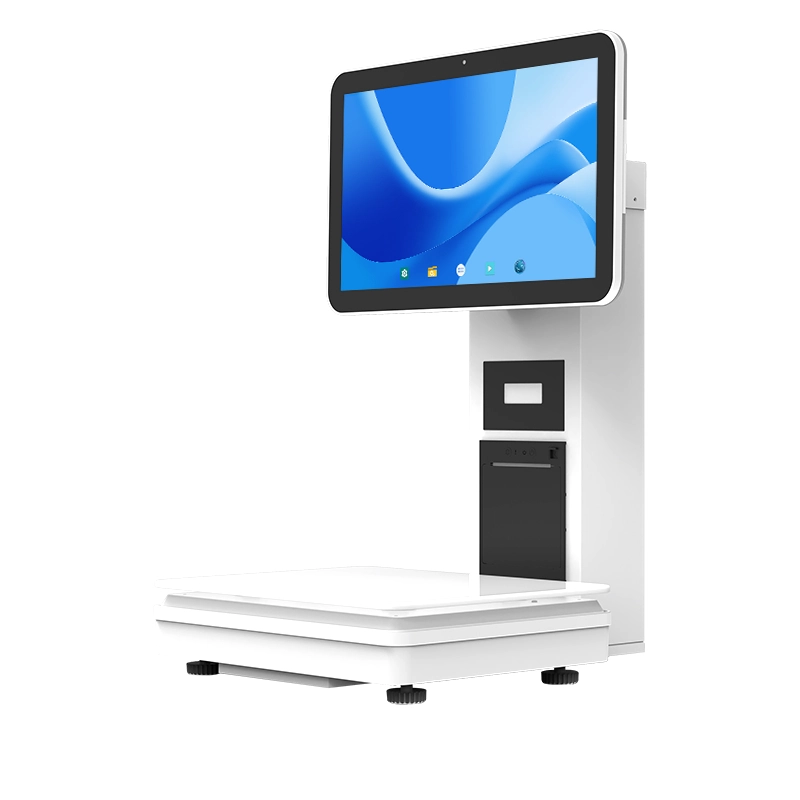

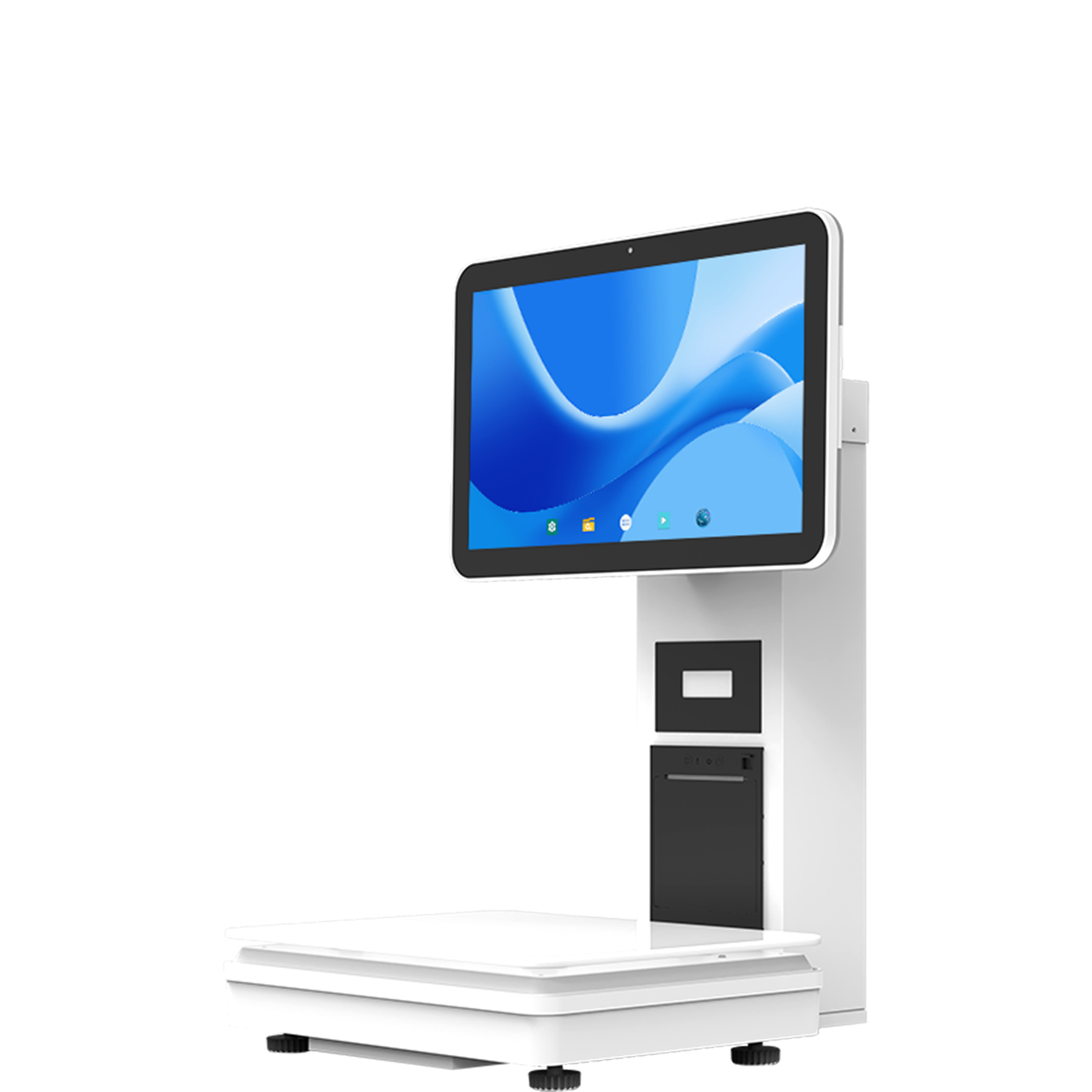

L1 oblique front view

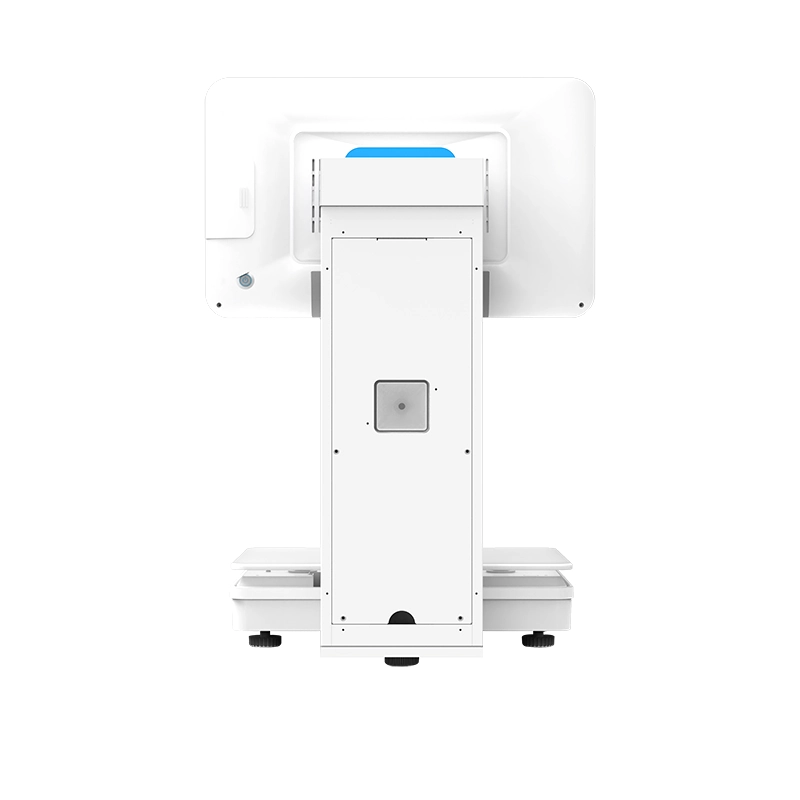

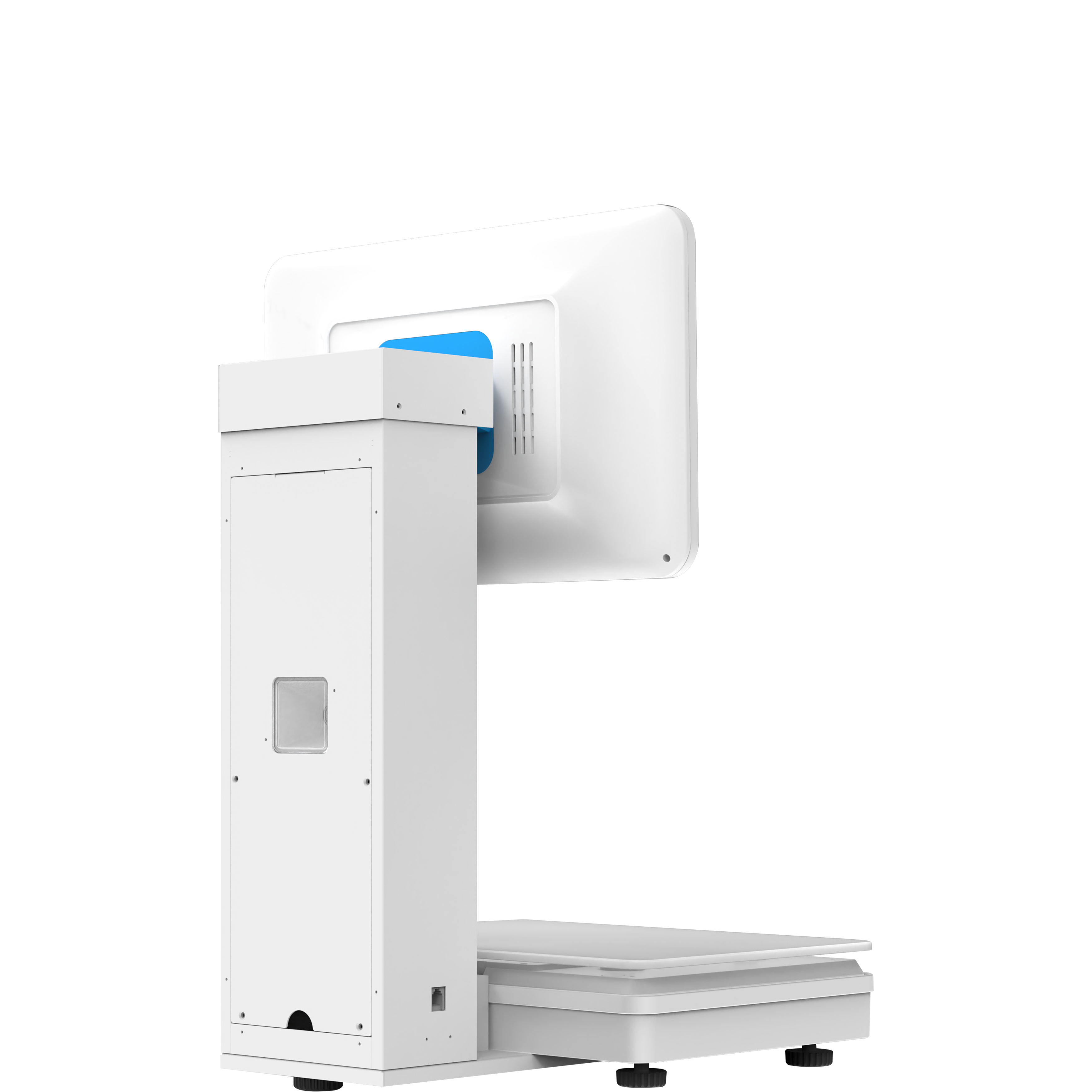

L1 oblique back view

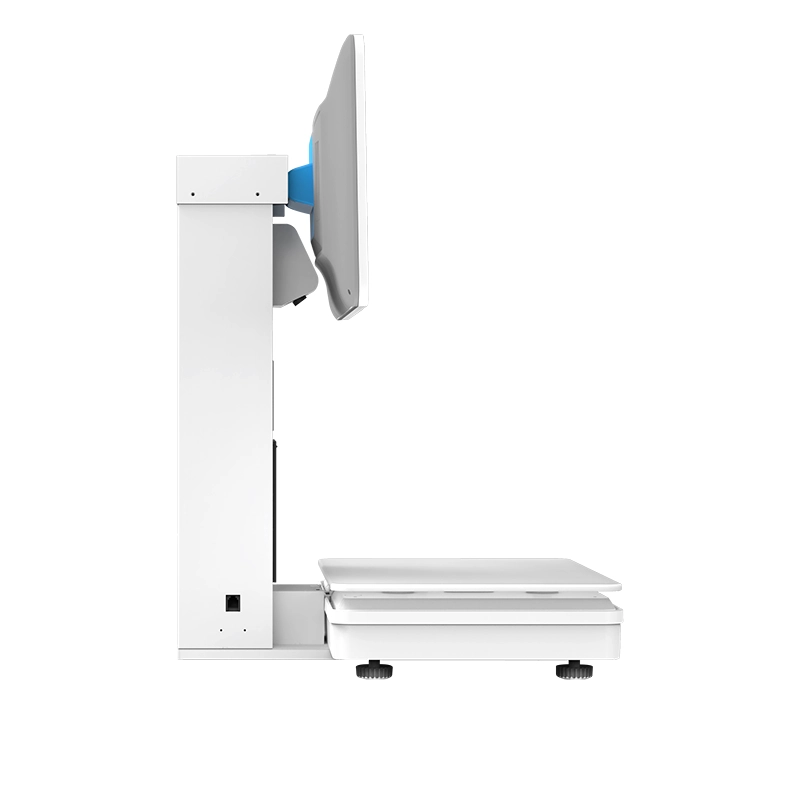

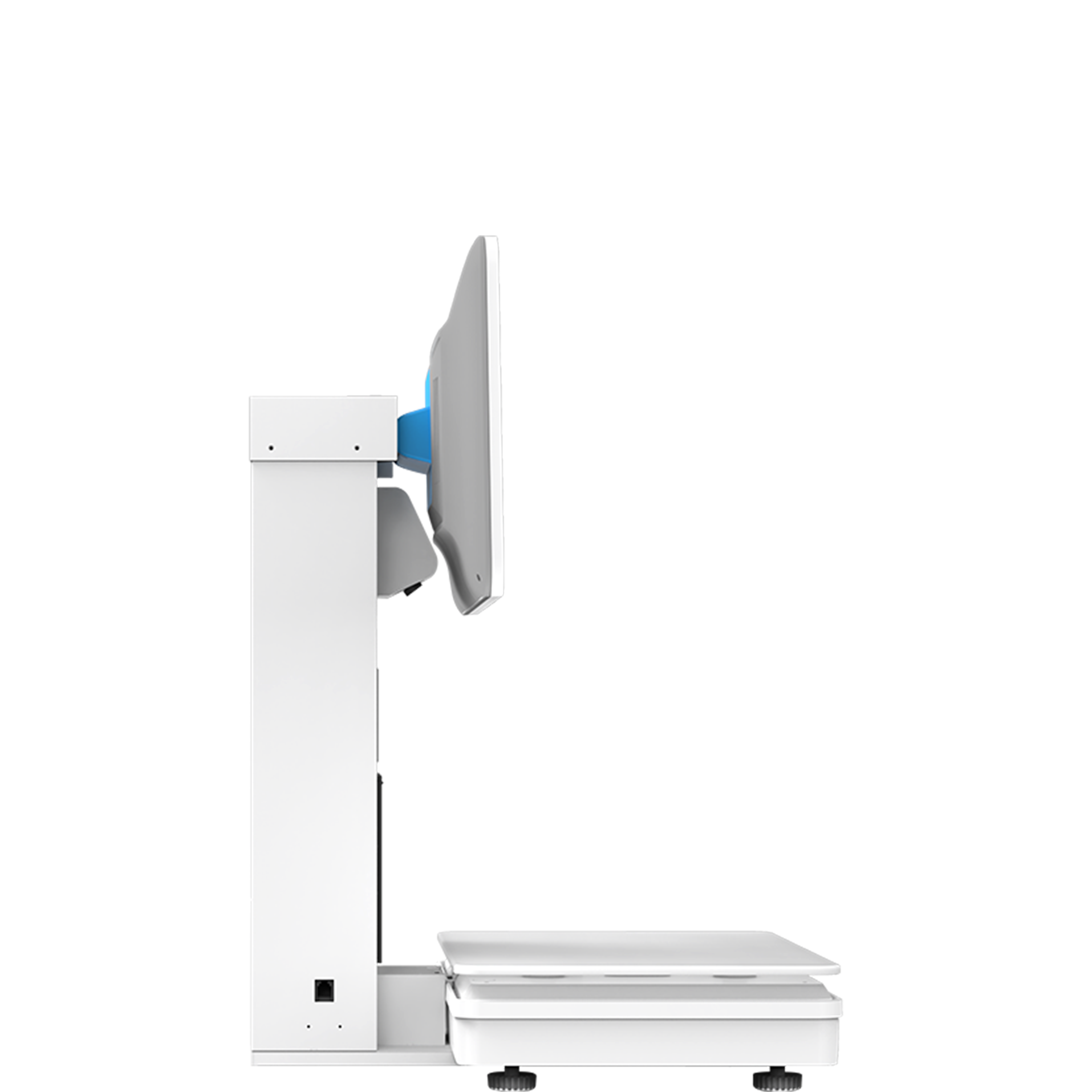

L1 side view

Design Showcase

Appreciate the design and craftsmanship

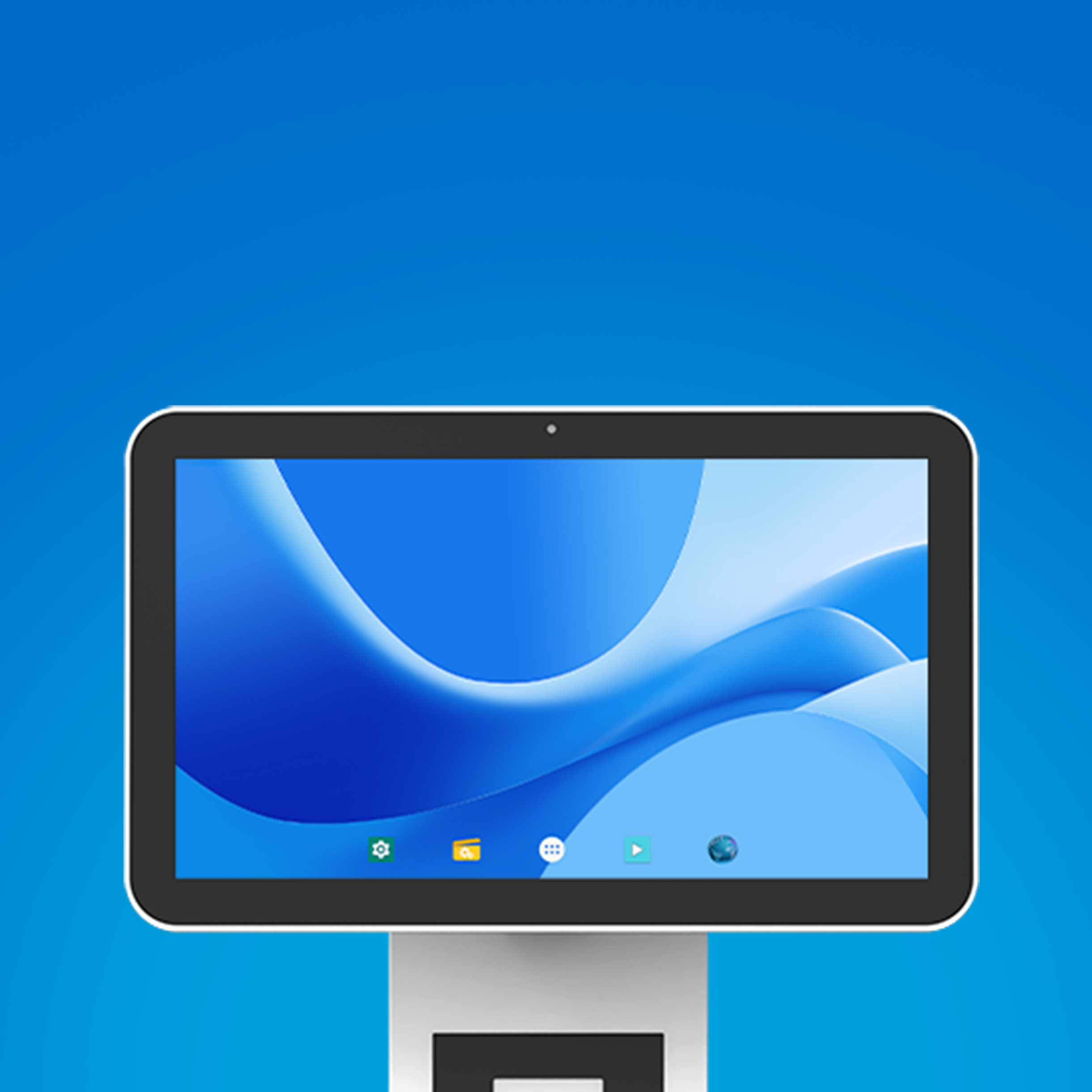

15.6"

1366×768 resolution

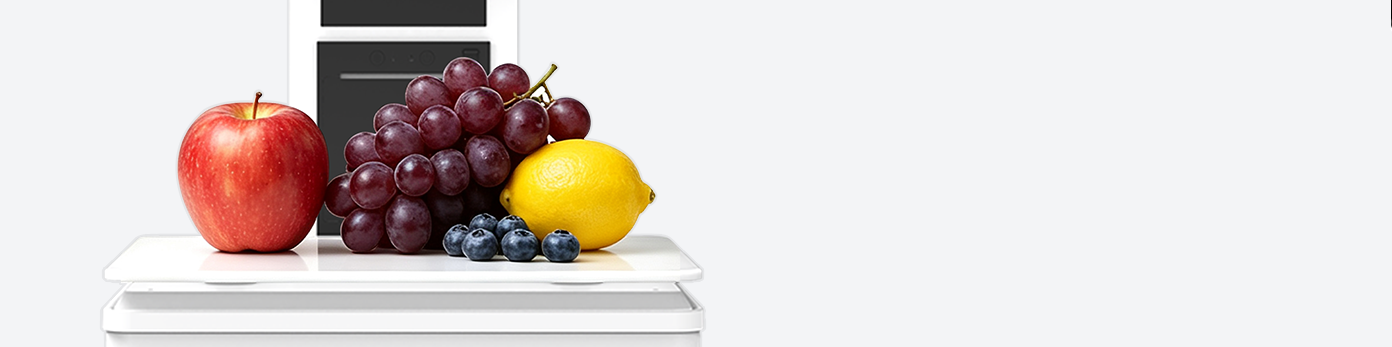

High‑precision
electronic scale

For fresh produce
and more

读卡器

Single or dual screen
customizable

One POS for every business scenario

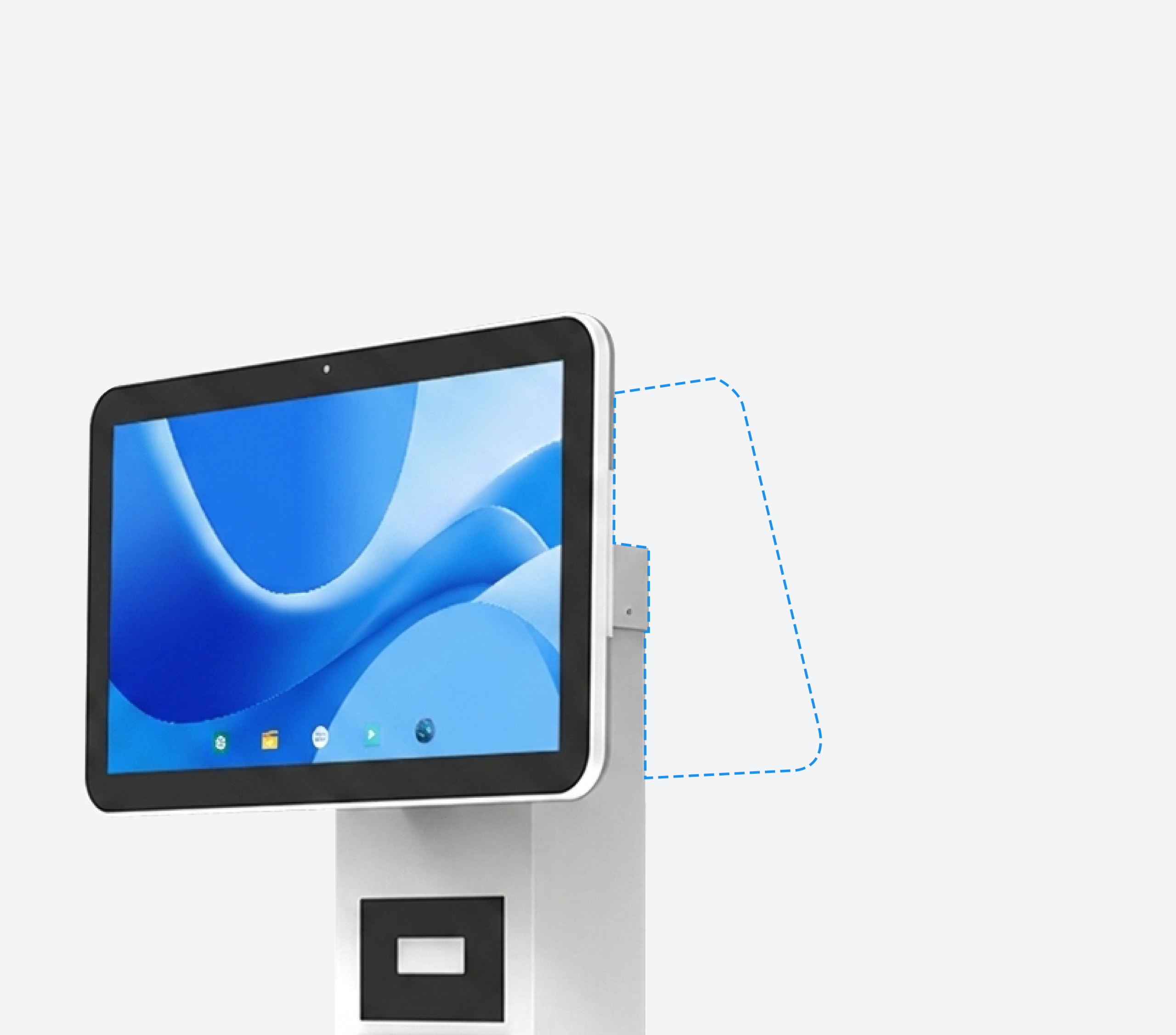

Optional AI recognition

Auto product recognition

Changes as needed, fits countless scenarios.

GENSTAR L1

Screen Size

11.6/13.3/15/15.6 inches

CPU

RK3568: Quad‑core 64‑bit Cortex‑A55 @ 2.0GHz
Celeron J6412: Quad‑core @ 2.0GHz

Storage

2GB RAM + 32GB ROM;
4GB RAM + 64GB ROM

Operating System

Android 7.1/9/11;
Windows 10/11

Optional accessories for more efficient operation

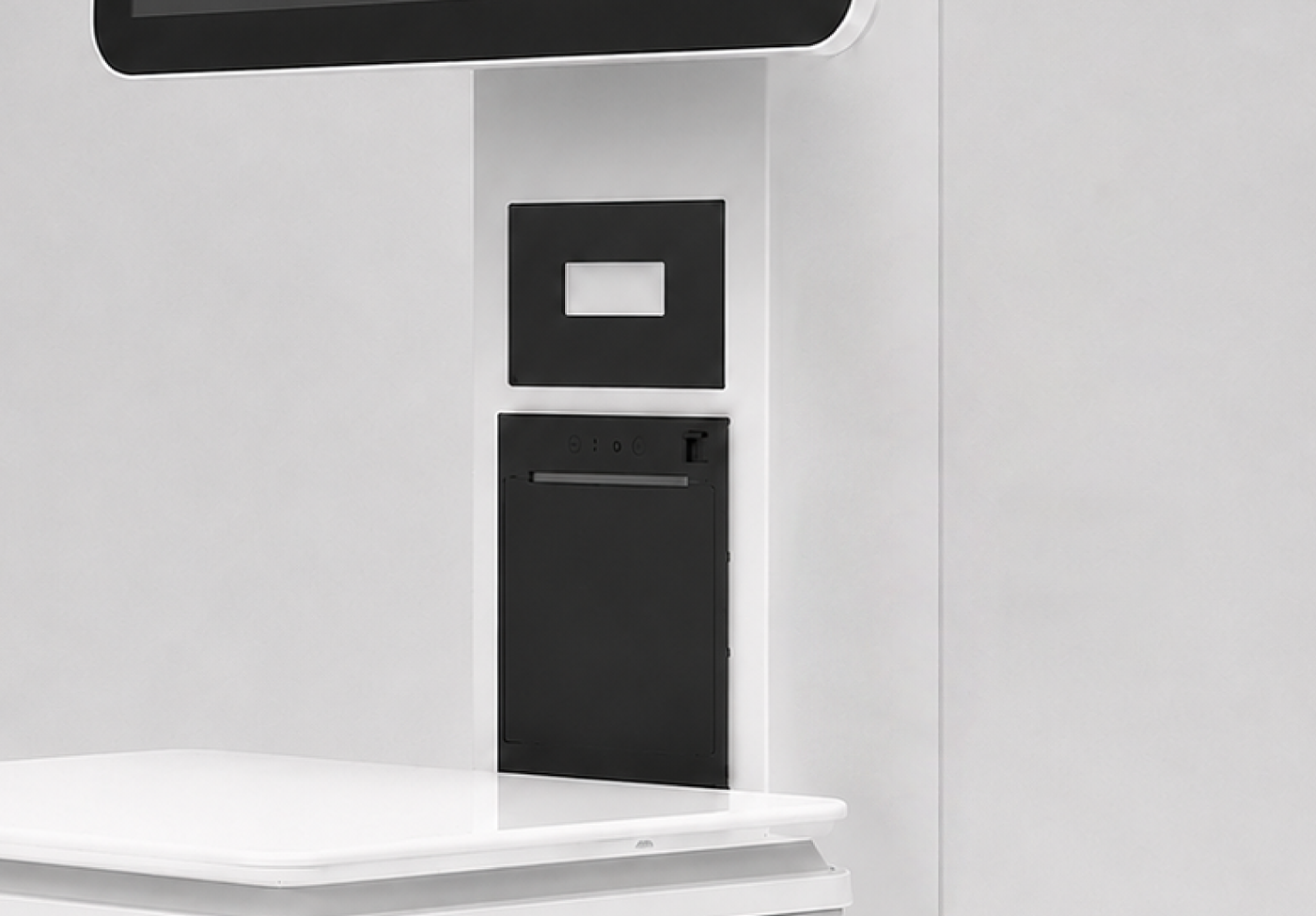

58mm Printer

"The product appearance is subject to the final mass production version."

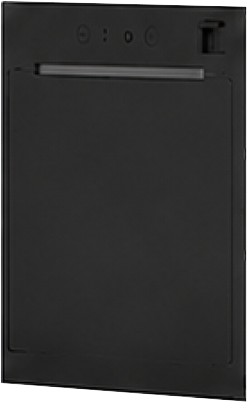

58mm printer

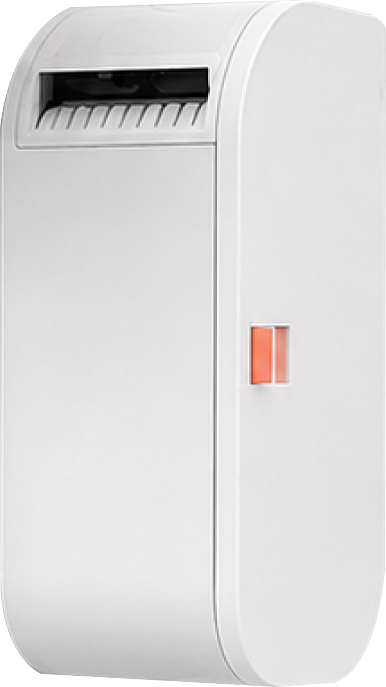

Label printer

Applicable Scenarios

Adapts to various business environments

Specialty Retail Chains

Supports versatile peripheral options and quick scanning. The compact POS system streamlines checkout, reducing wait times and enhancing efficiency even during peak hours.

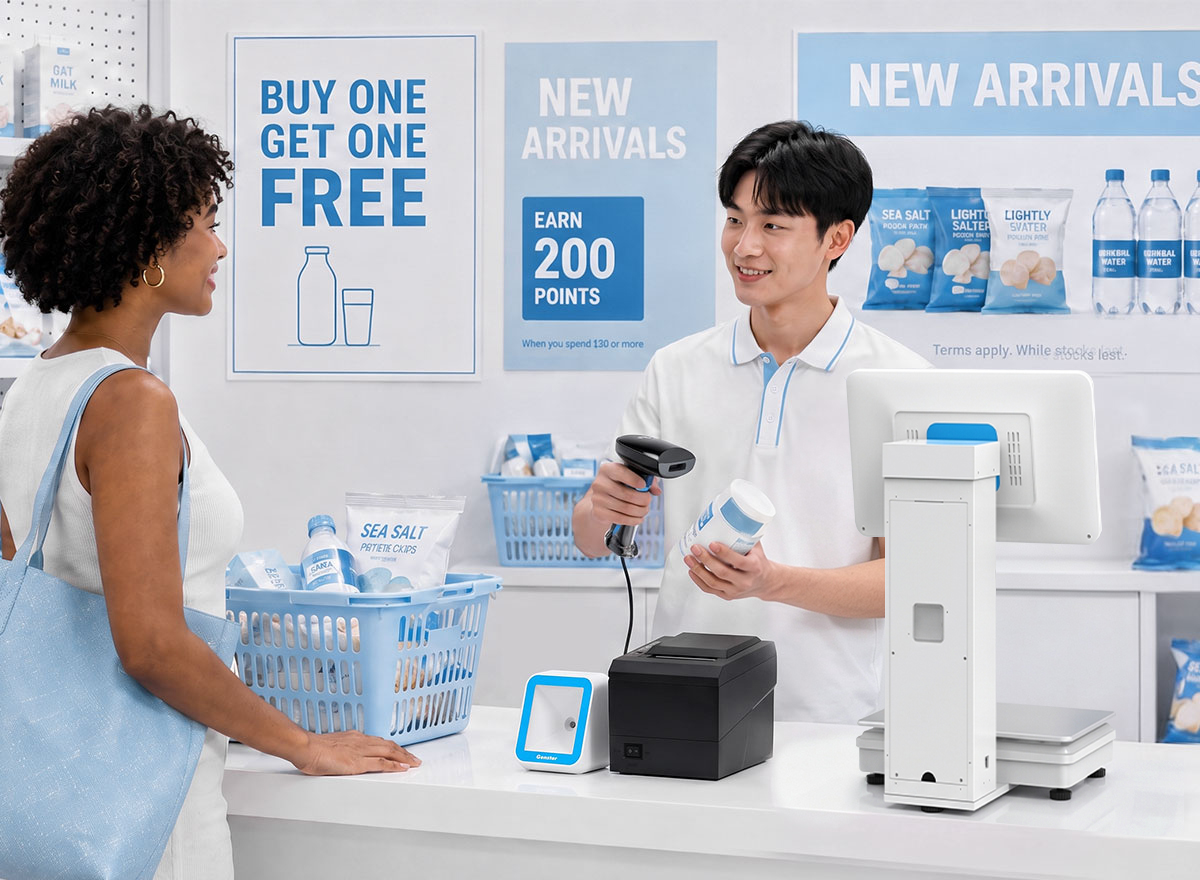

Convenience Store Chains

Supports multiple payment methods for more efficient service. Optional magnetic stripe card readers facilitate easy card swiping and membership card management, enhancing customer convenience and experience.

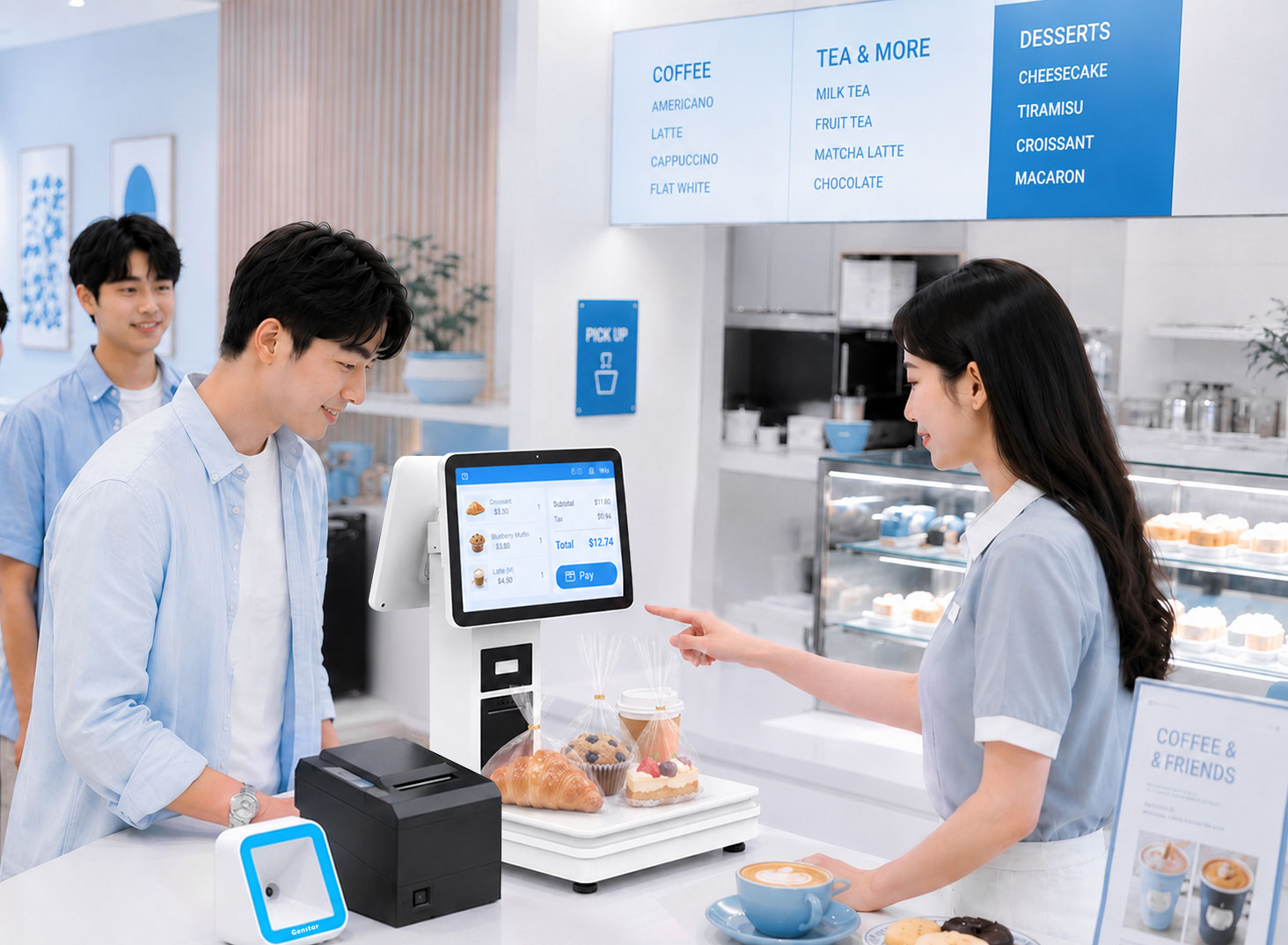

Fast Food Chains

Even during peak hours, the system runs smoothly without lag or dropped frames, ensuring seamless integration of order taking, kitchen order processing, and checkout, improving service and table turnover efficiency.

Technical Specifications

Full product specs available

Screen Size

11.6/13.3/15/15.6 inches

Resolution

1024*768 / 1366*768 / 1920*1080

Touchscreen

10-point capacitive touchscreen

CPU

RK3568: Quad-core 64-bit Cortex-A55, up to 2.0GHz

Celeron J6412: Quad-core, 2.0GHz

Storage

2GB RAM + 32GB ROM

4GB RAM + 64GB ROM

Operating System

Android 7.1/9/11;
Windows 10/11

Camera

Optional: Built-in monocular (1MP / 2MP / 5MP / 3D structured-light camera / or external binocular )

Scanner

1D/2D barcode scanner

Card Reader

IC/ID/NFC card reader

Speaker

3W

Wi-Fi

Supports 802.11b/g/n

Bluetooth

Supports Bluetooth 2.1/3.0/4.0

Button

Power button (screen lock)

Material

Sheet metal

Color

White

External Interfaces

Android:
USB x4, RJ45 LAN x1, DC-IN x1, Mini HDMI x1

Windows:
USB x4, RJ45 LAN x1, DC-IN x1,RJ11 x1

Packaging Dimensions

L57 x W47 x H69.5 (cm)

Gross Weight: 23kg

Power Adapter

Input: AC 100-240V / 1.7A

Output: DC 12V / 5A

Onboard interfaces

Rich onboard I/O for extended connectivity

size

Overall dimensions (L×W×H)

Product Dimensions:

L1 Single-screen (15.6″): 34 x 26 x 57 cm
L1 Dual-screen (15.6″): 34 x 26 x 57 cm

Packaging Dimensions:

Single-screen: L57 x W47 x H69.5 cm | Gross Weight: 23 kg

Download

Access drivers & documentation

L1 Product Documents

Product Six-View Drawing
Product Specifications

L1 Unboxing Video

Notes:
1. Unless otherwise specified, all data above is derived from Junshida’s laboratories. In the event of any discrepancy between actual usage data and the data provided here, the actual usage data shall prevail.

2. The content of this product introduction is based on information available at the time of the product’s market launch; the content is subject to change due to product version upgrades or other reasons. Junshida reserves the right to modify the products and content on its official website without prior notice.
