GENSTAR S1

Delivering a serene human‑machine experience

in complex business environments.

Different configurations

Flexible hardware options available

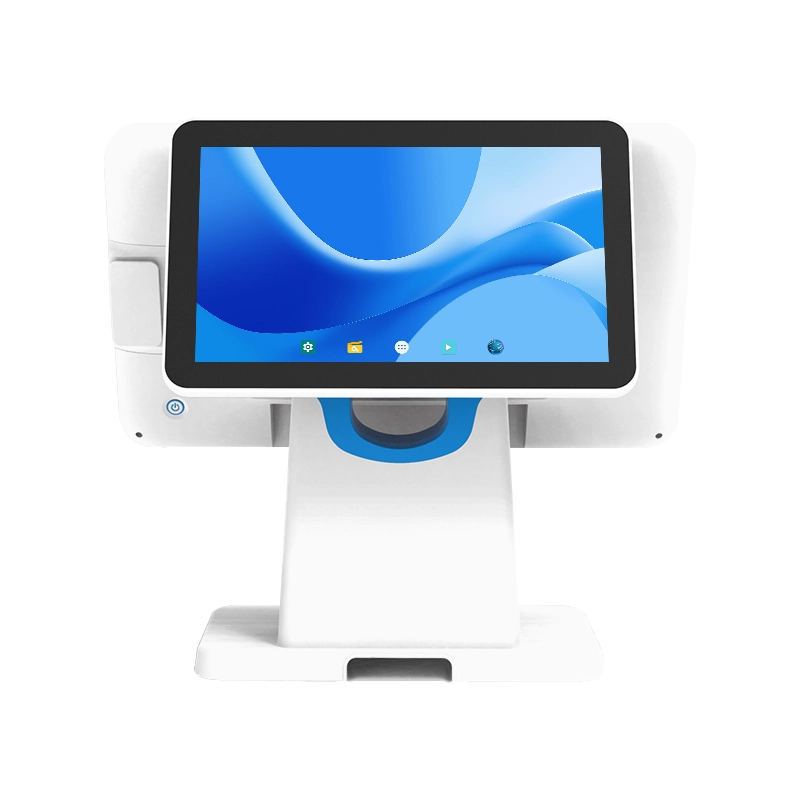

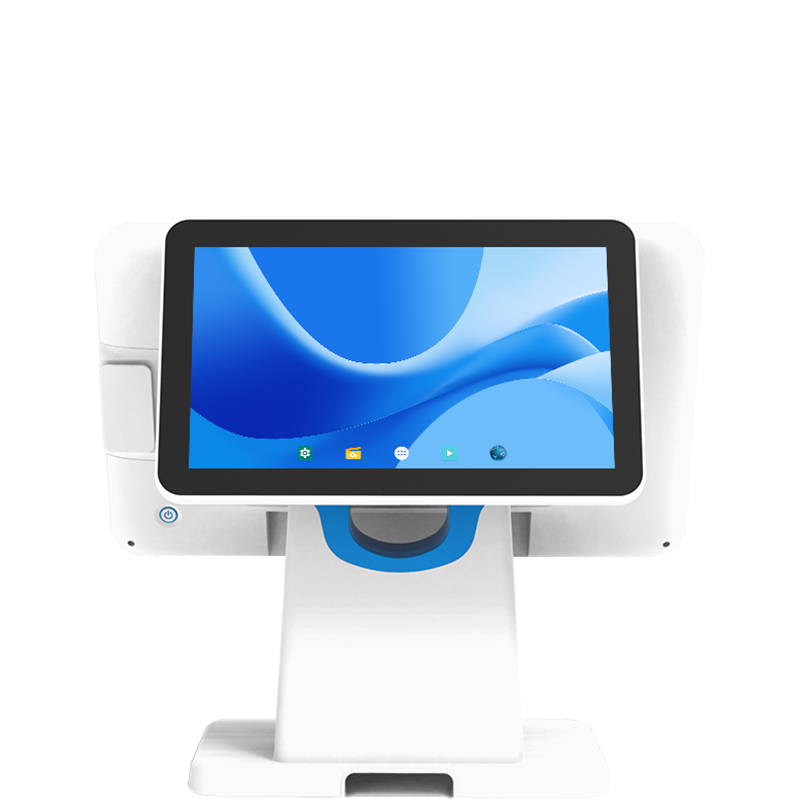

S1 front view

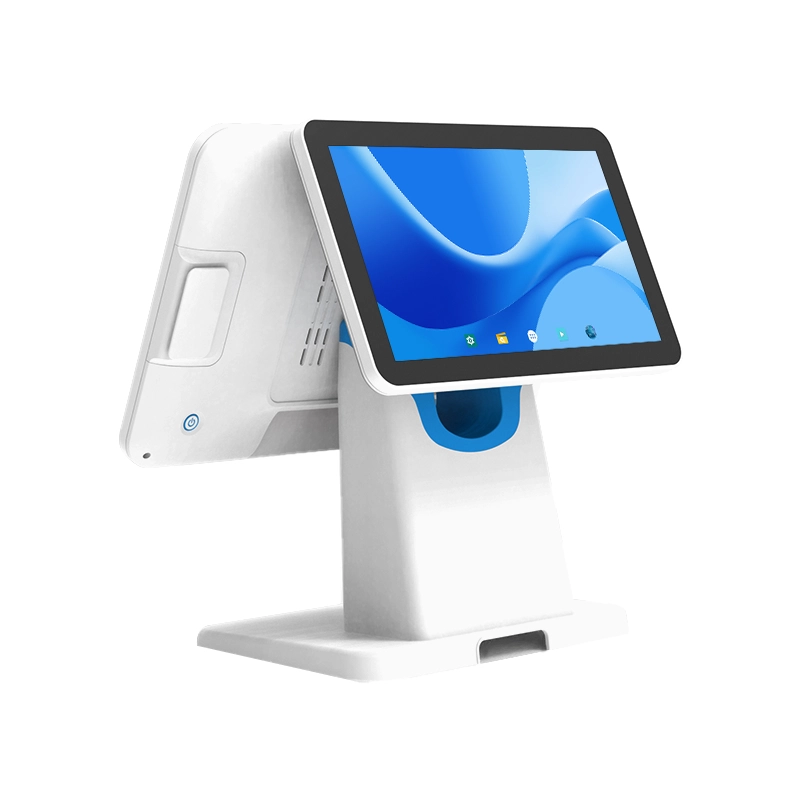

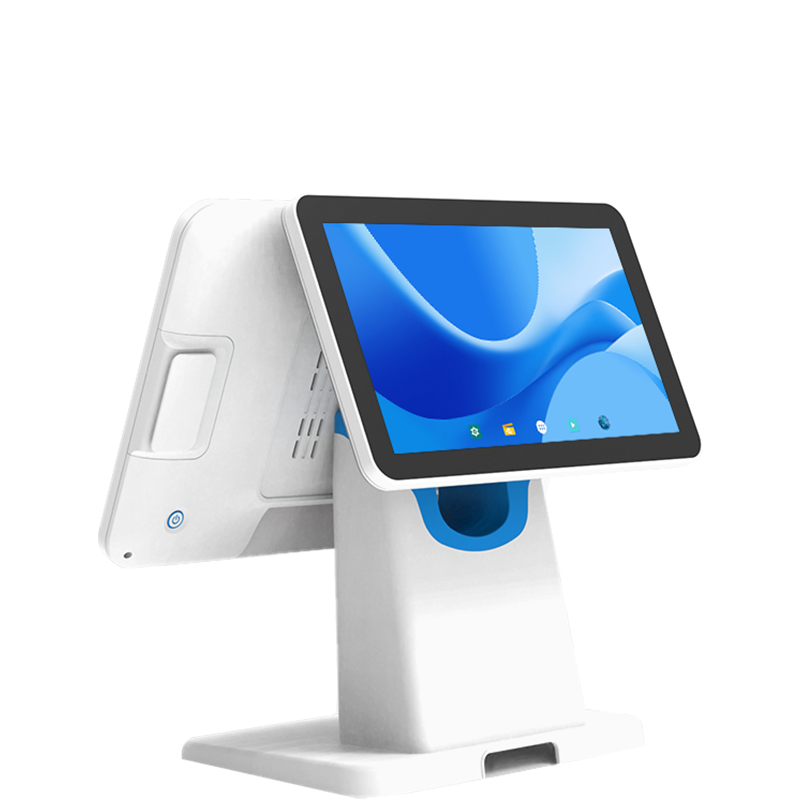

S1 oblique front view

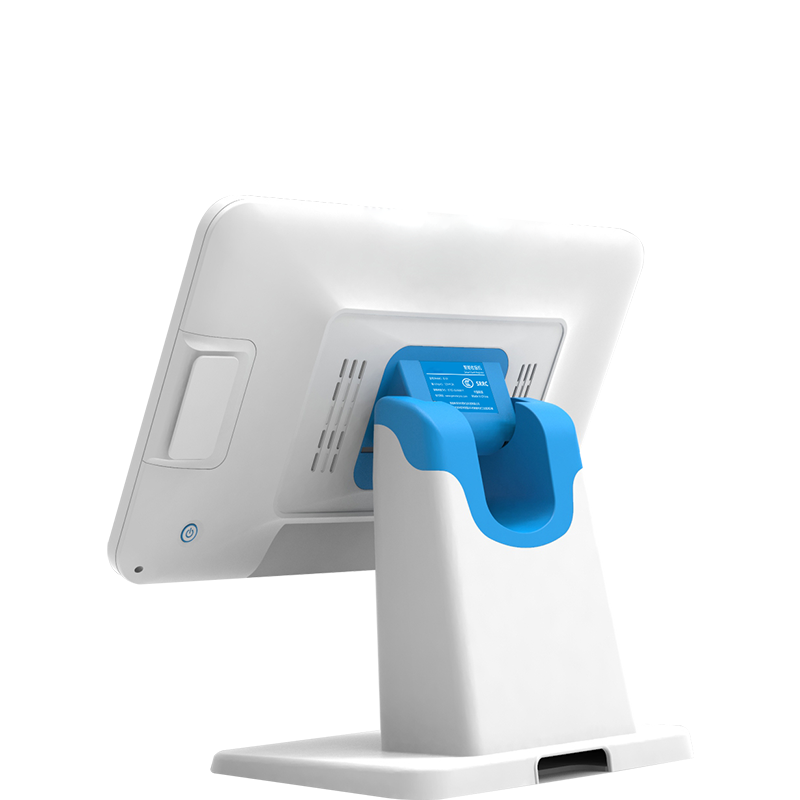

S1 oblique back view

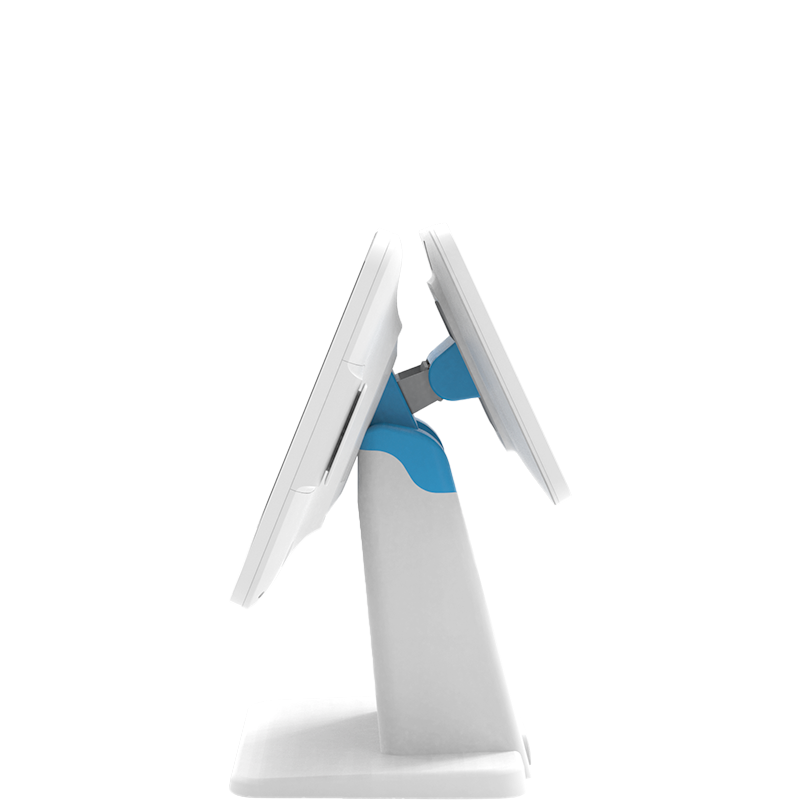

S1 side view

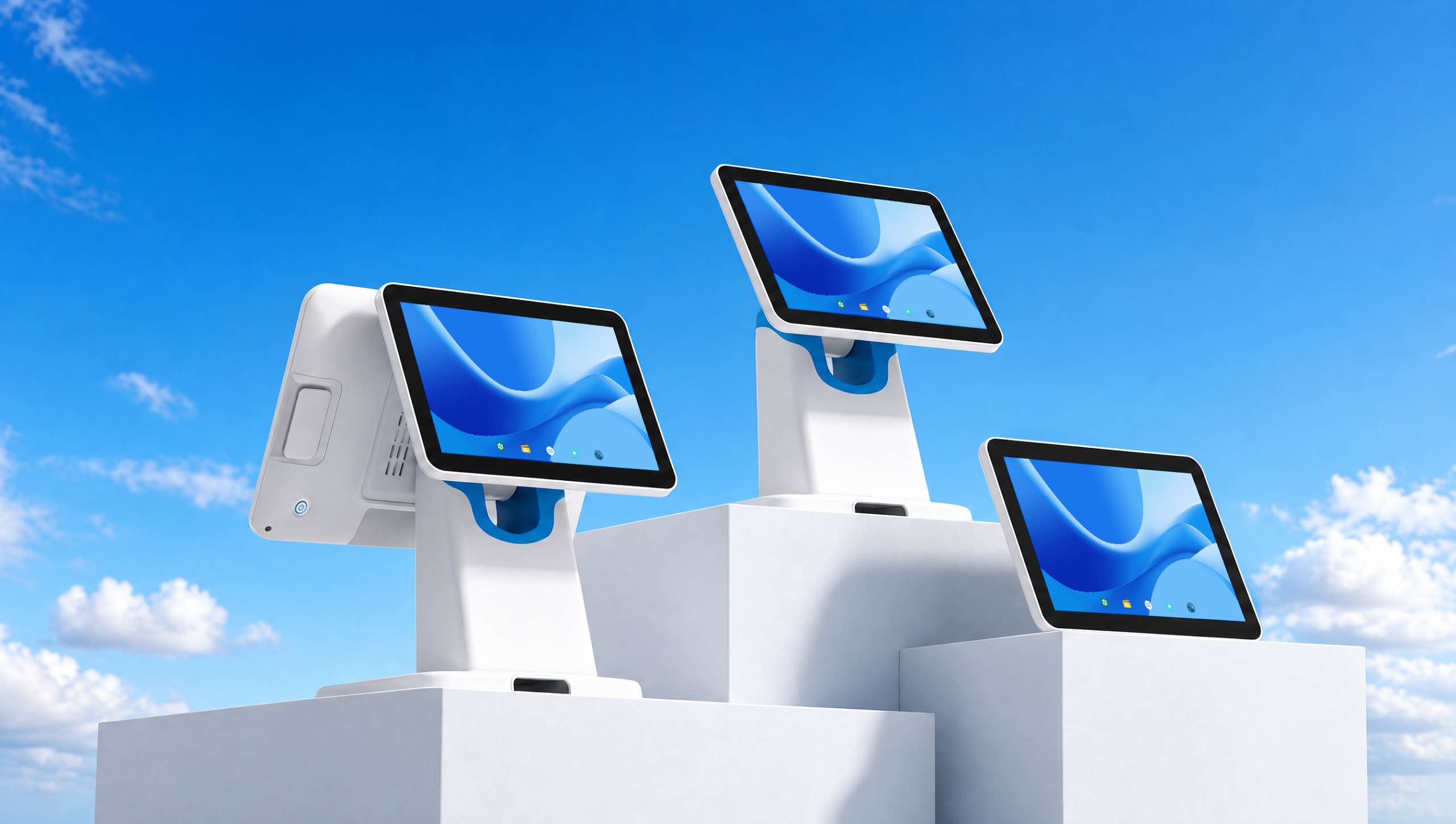

Design Showcase

Appreciate the design and craftsmanship

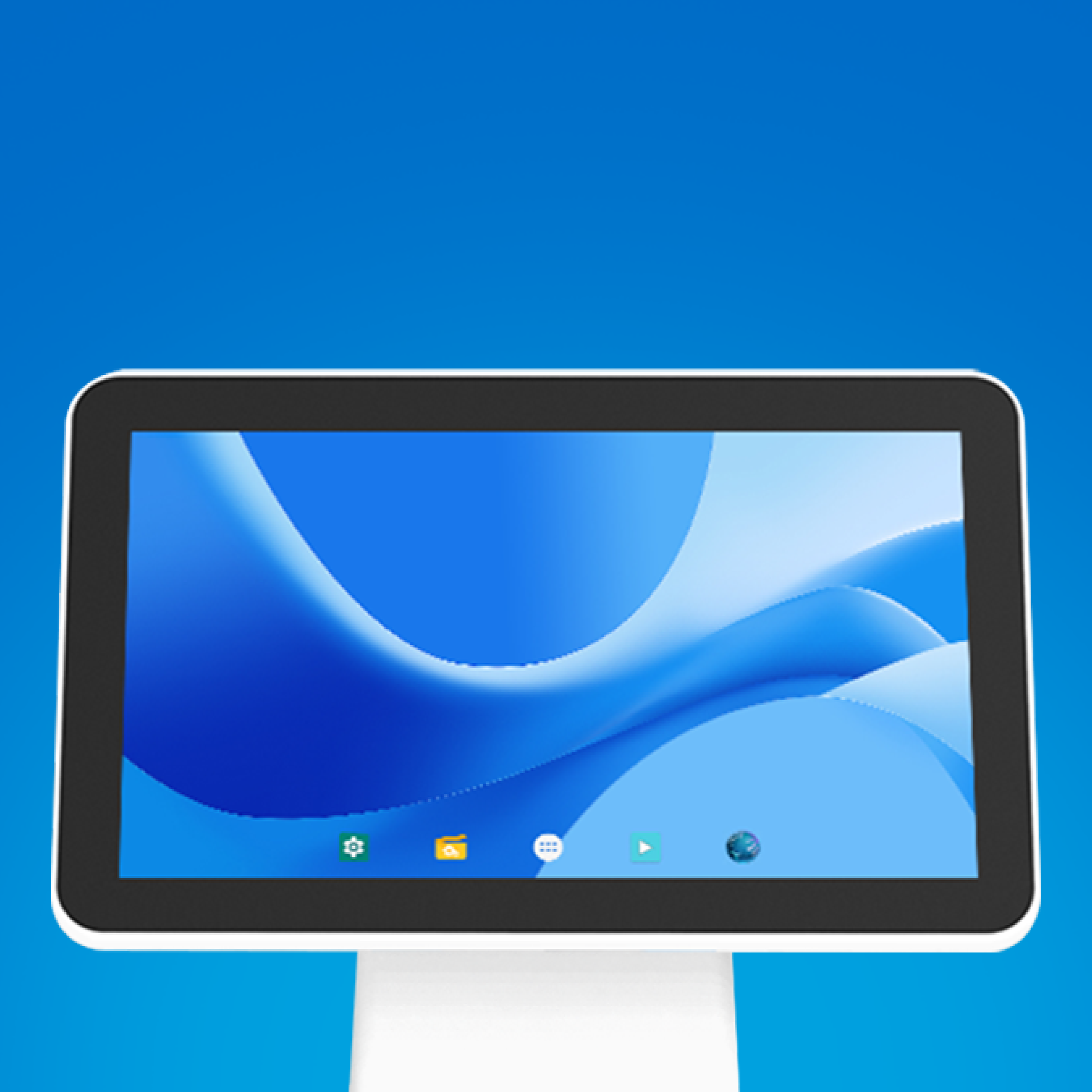

15.6"

1920×1080 resolution HD large screen

Minimalist
design

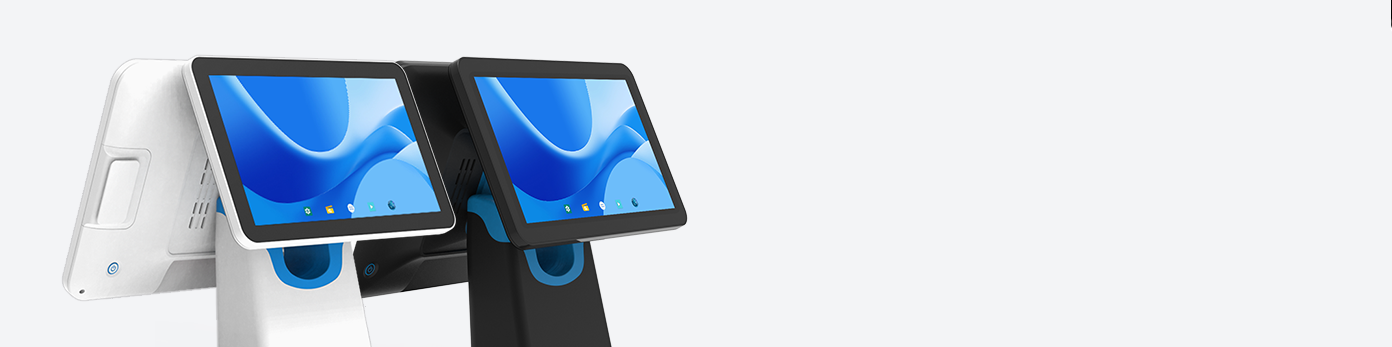

Black/White
optional

读卡器

Single or dual screen
customizable

One POS for every business scenario

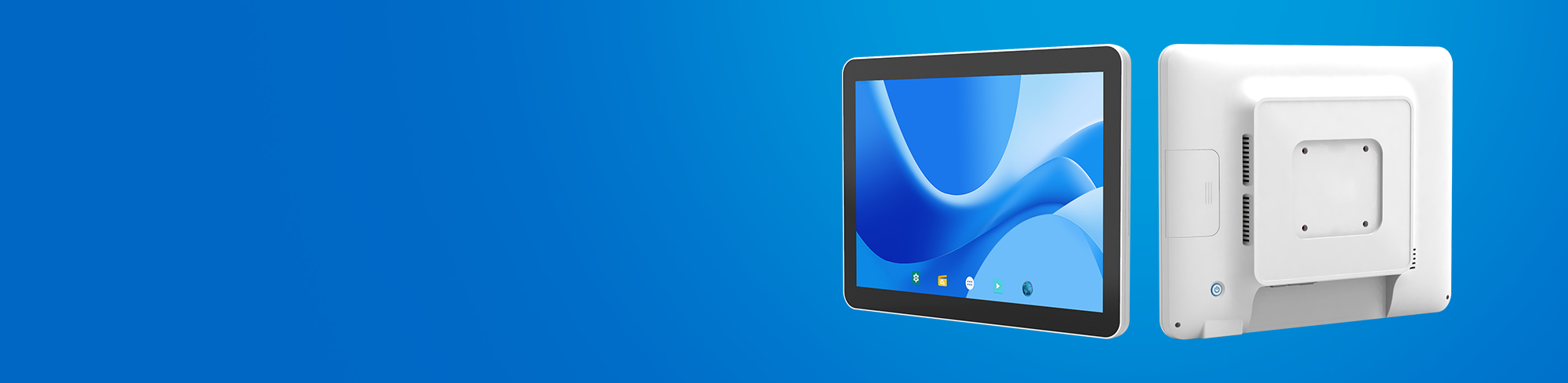

Expandable modules

Flexibly adaptable to various scenarios

Changes as needed, fits countless scenarios.

GENSTAR S1

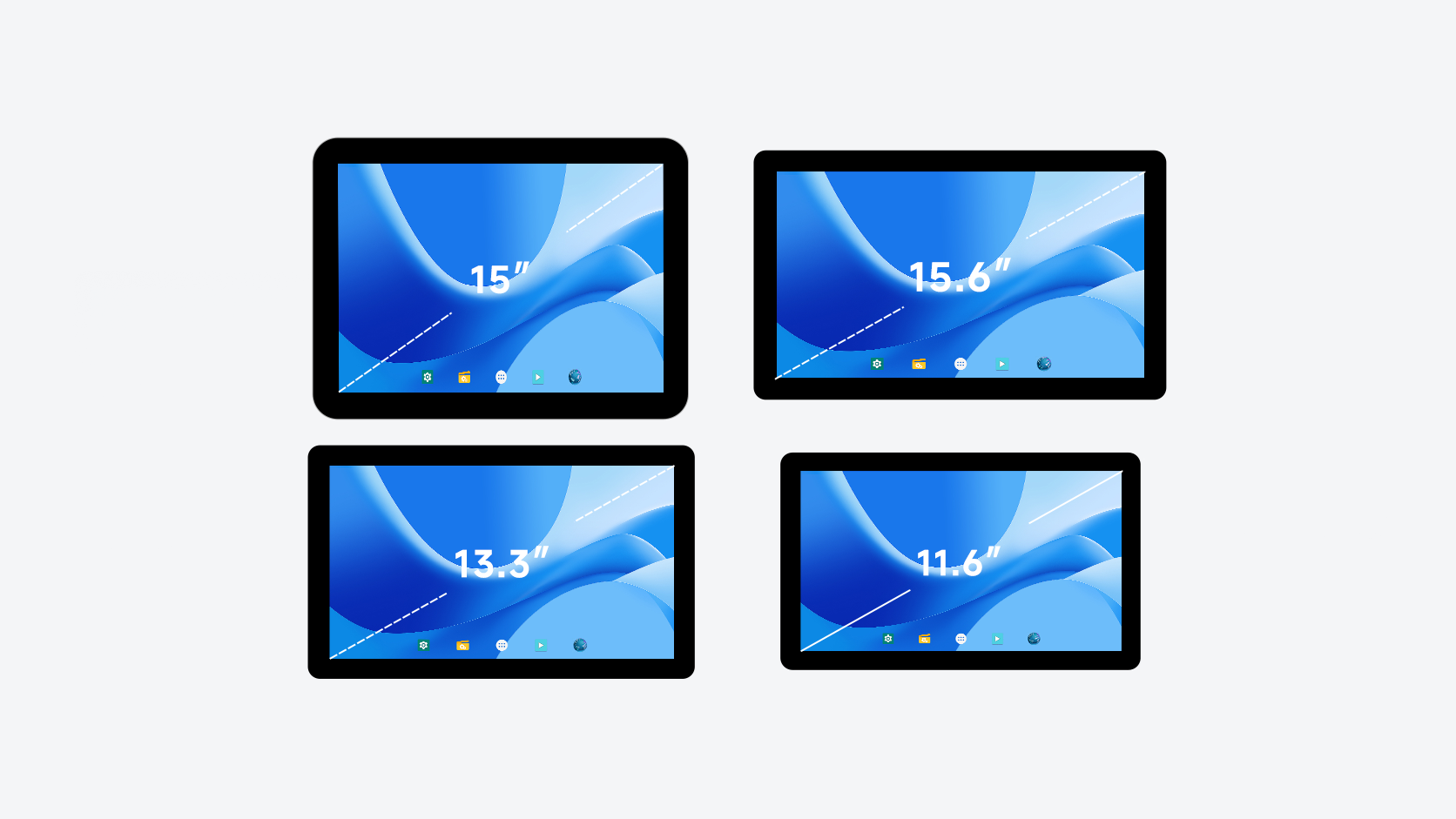

Screen Size

11.6/13.3/15/15.6 inches

CPU

RK3568: Quad‑core 64‑bit Cortex‑A55 @ 2.0GHz
Celeron J6412: Quad‑core @ 2.0GHz

Storage

2GB RAM + 32GB ROM
4GB RAM + 64GB ROM

Operating System

Android 7.1/11
Windows 10/11

Optional accessories for more efficient operation

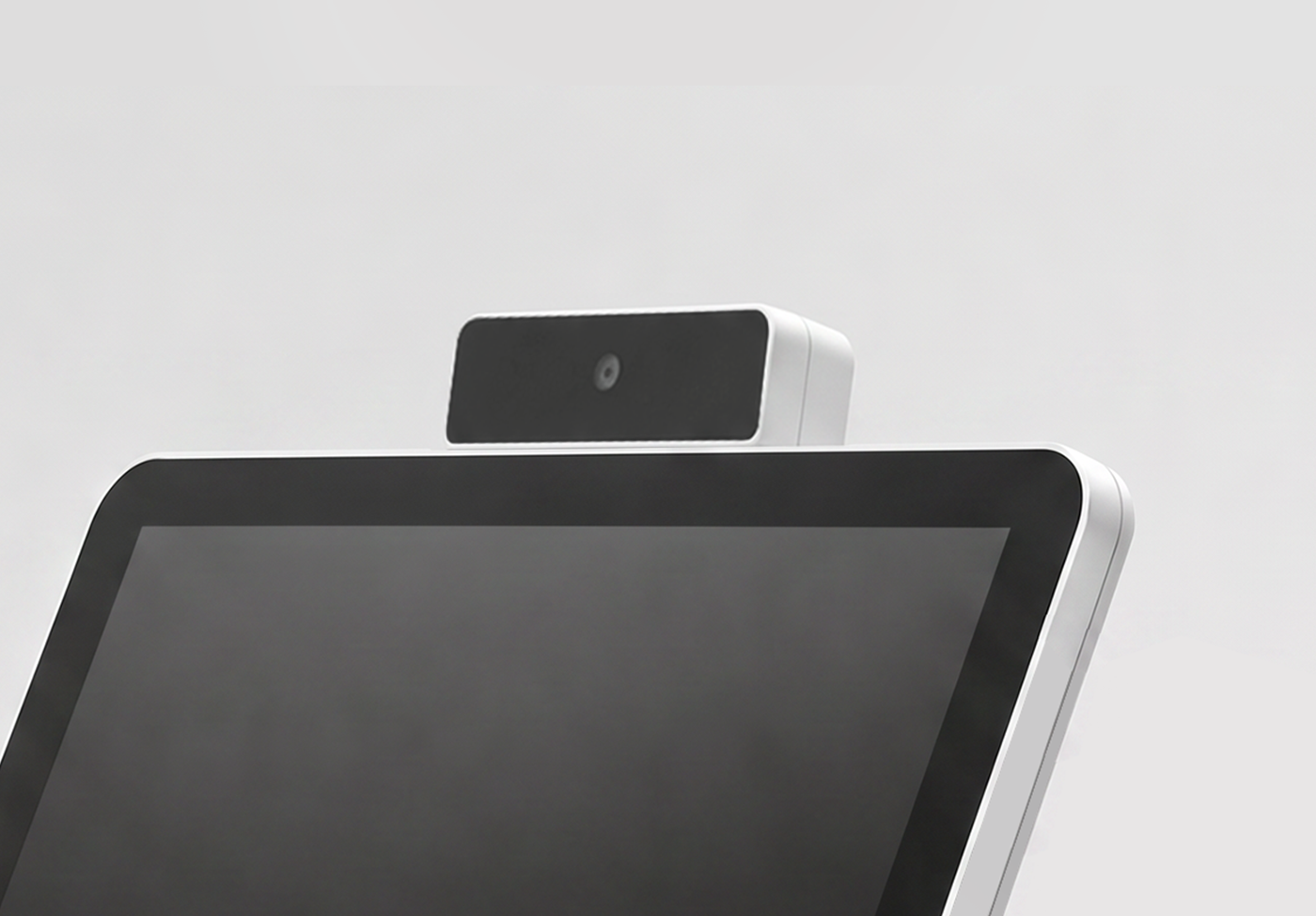

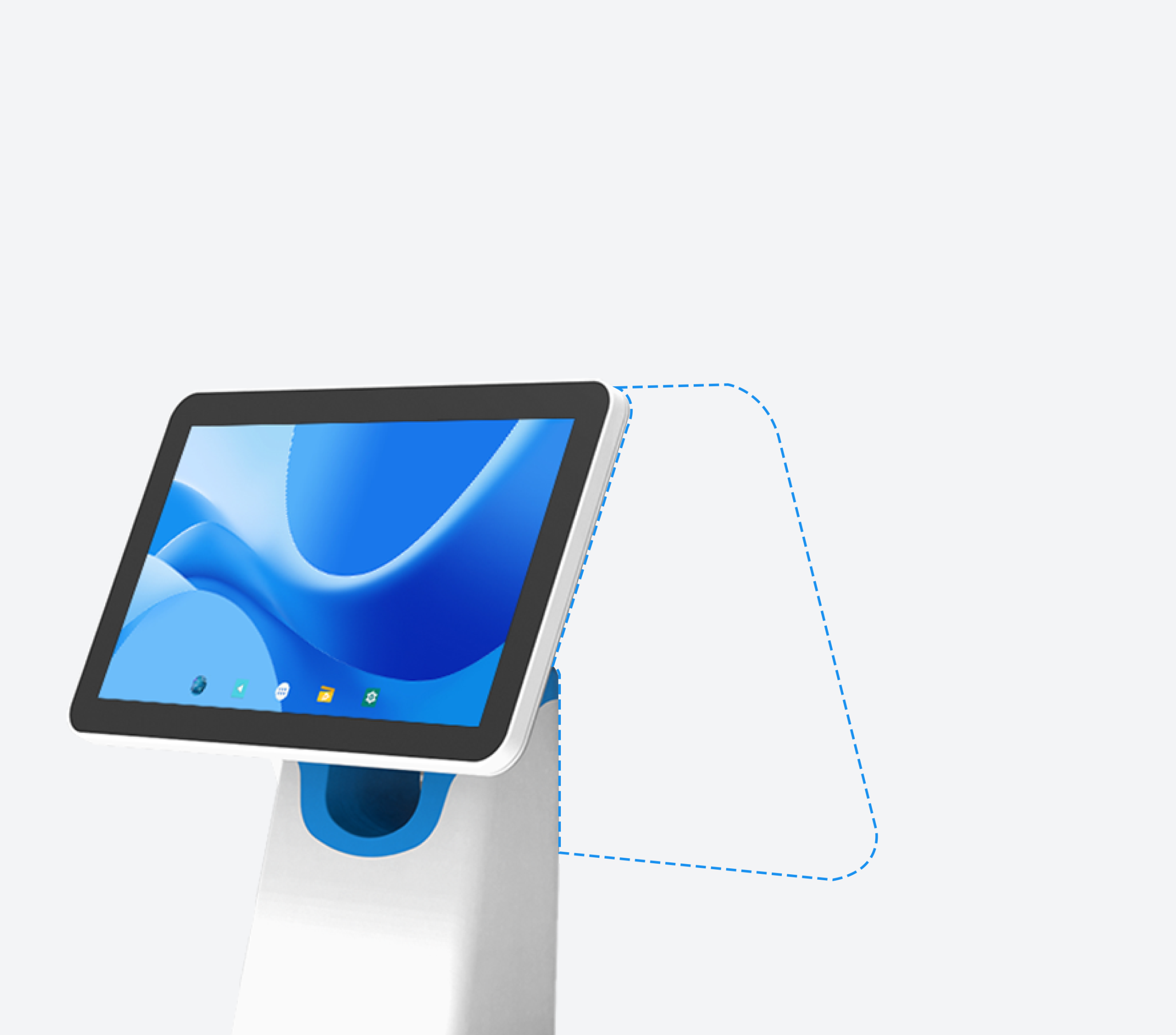

Monocular Camera

"The product appearance is subject to the final mass production version."

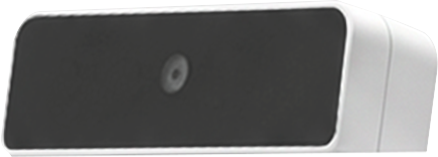

Monocular Camera

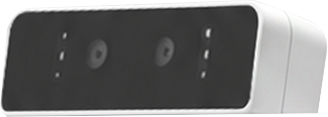

Stereo Camera

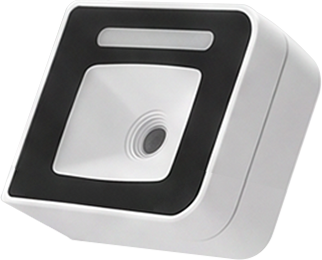

Scanner

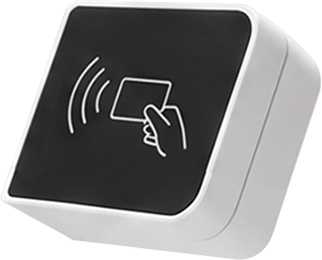

Card Reader

Applicable Scenarios

Adapts to various business environments

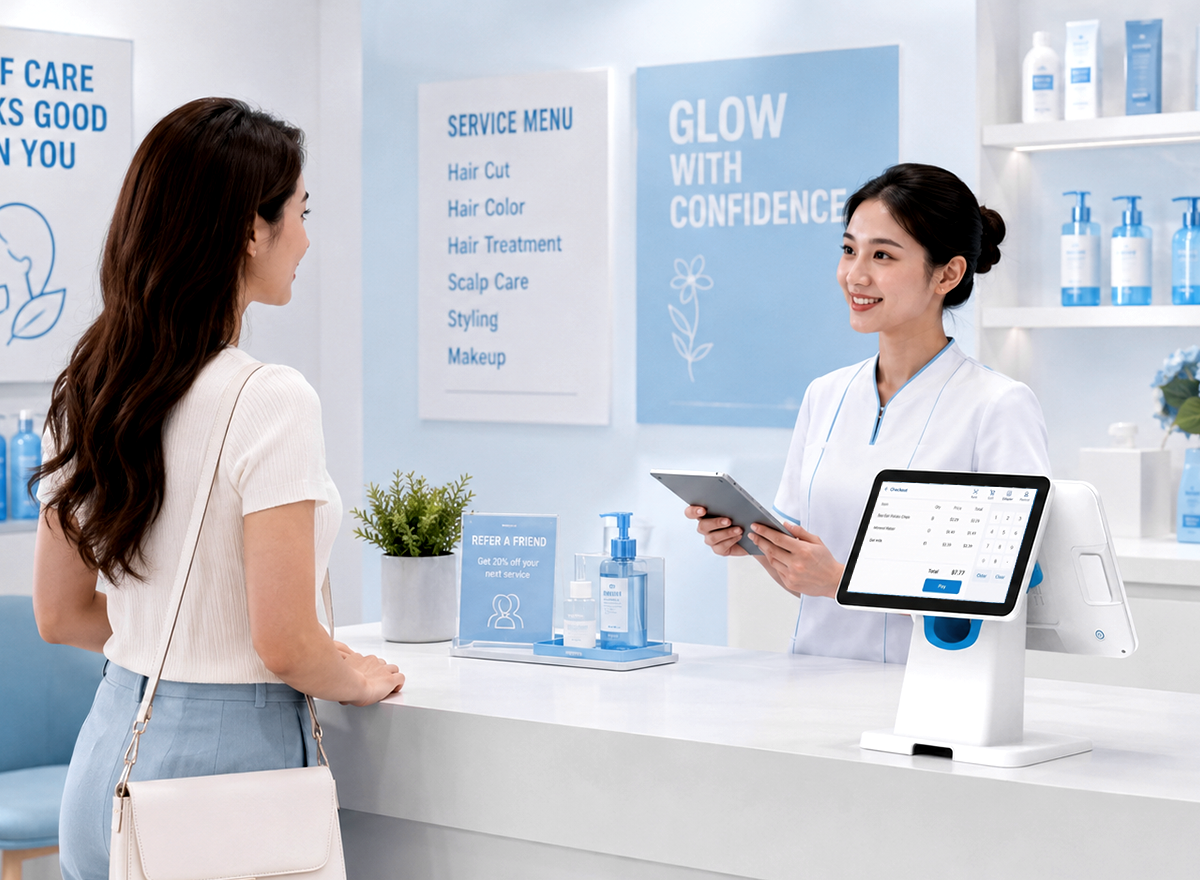

Individual Stores

A technologically advanced exterior and metallic body create a more stylish store image. The minimalist cable management design eliminates clutter and frees up counter space.

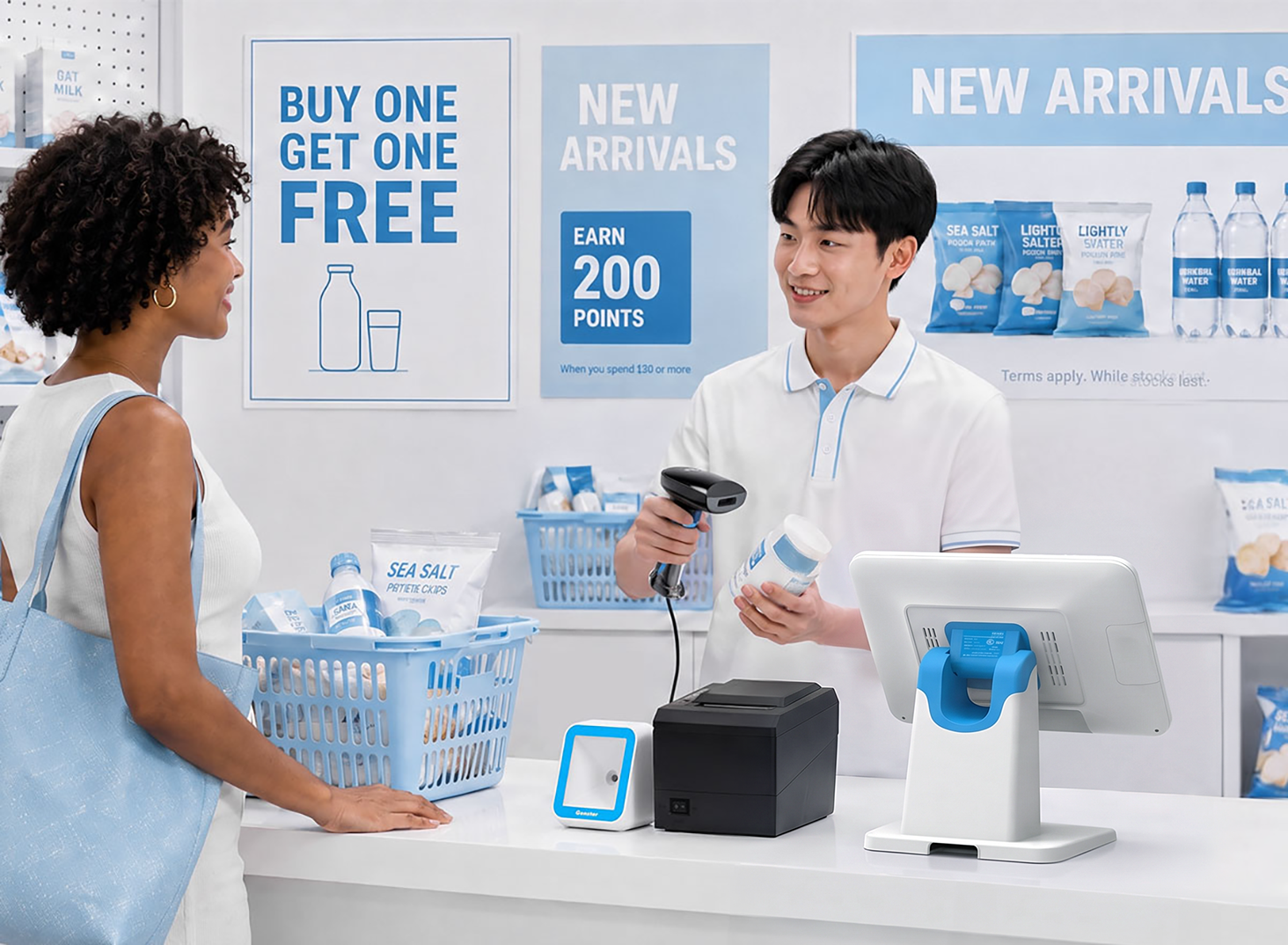

Convenience Store Chains

Supports multiple payment methods for more efficient service. Optional magnetic stripe card readers facilitate easy card swiping and membership card management, enhancing customer convenience and experience.

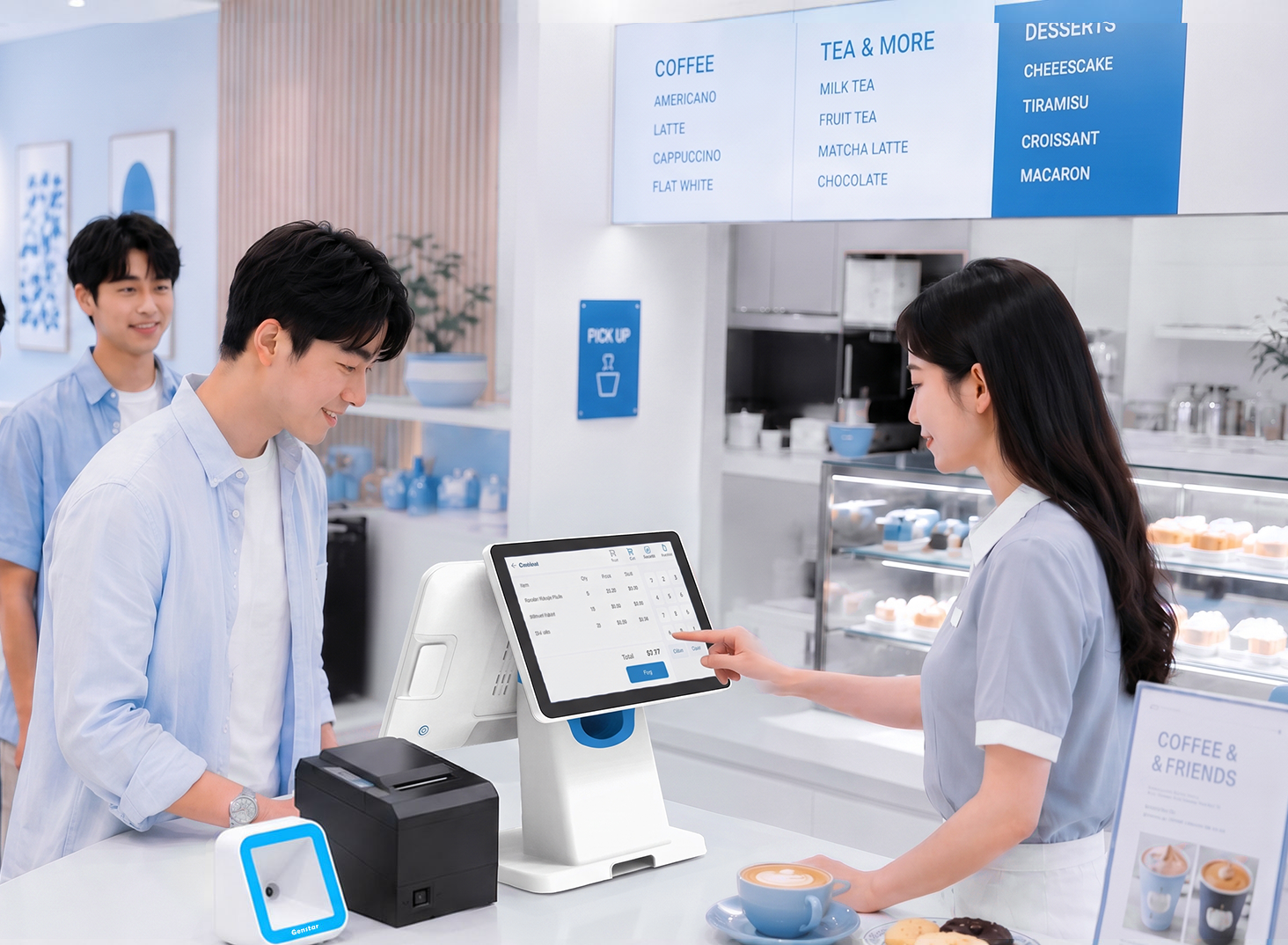

Fast Food Chains

Even during peak hours, the system runs smoothly without lag or dropped frames, ensuring seamless integration of order taking, kitchen order processing, and checkout, improving service and table turnover efficiency.

Technical Specifications

Full product specs available

Screen Size

11.6/13.3/15/15.6 inches

Resolution

1024*768 / 1366*768 / 1920*1080

Touchscreen

10-point capacitive touchscreen

CPU

RK3568: Quad-core 64-bit Cortex-A55, up to 2.0GHz
Celeron J6412: Quad-core, 2.0GHz

Storage

2GB RAM + 32GB ROM
4GB RAM + 64GB ROM

Operating System

Android 7.1/11
Windows 10/11

Camera

Optional: Built-in monocular (1MP / 2MP / 5MP / 3D structured-light camera / or external binocular )

Scanner

1D/2D barcode scanner

Card Reader

IC/ID/NFC card reader

Speaker

3W

Wi-Fi

Supports 802.11b/g/n

Bluetooth

Supports Bluetooth 2.1/3.0/4.0

Button

Power button (screen lock)

Material

Plastic

Color

White

External Interfaces

Android:
USB x4, RJ45 x1, DC-IN x1, Mini HDMI x1

Windows:
USB x4, RJ45 x1, DC-IN x1, HDMI x1, RJ48 RS232 x2, AUX x1

Packaging Dimensions

Single: 43×26×38.5 cm
Gross Weight: 4.46 kg
Dual: 47.5×27.5×47.5 cm
Gross Weight: 6.5 kg

Power Adapter

Input: AC 100-240V / 1.7A

Output: DC 12V / 5A

Onboard interfaces

Rich onboard I/O for extended connectivity

size

Overall dimensions (L×W×H)

Product Dimensions:

S1 Single (15.6″): 26×19×36 cm
S1 Dual (15.6″ + 15.6″): 27×19×39 cm

Packaging Dimensions:

Single: 43×26×38.5 cm
Gross Weight: 4.46 kg
Dual: 47.5×27.5×47.5 cm
Gross Weight: 6.5 kg

Download

Access drivers & documentation

S1 Product Documents​

Product Six-View Drawing
Product Specifications

S1 Unboxing Video

Notes:
1. Unless otherwise specified, all data above is derived from Junshida’s laboratories. In the event of any discrepancy between actual usage data and the data provided here, the actual usage data shall prevail.

2. The content of this product introduction is based on information available at the time of the product’s market launch; the content is subject to change due to product version upgrades or other reasons. Junshida reserves the right to modify the products and content on its official website without prior notice.
